Plant symbols for landscape design are a shorthand for real trees, shrubs, groundcovers, and planting areas. The shapes are useful, but they are not a universal code. A circle that looks like a tree on one drawing can mean an existing plant, a proposed canopy, or a grouped planting on another. The dependable way to read a plan is to start with its legend, then follow each plant code to the schedule and the location on the sheet.
Read the legend before reading the shapes

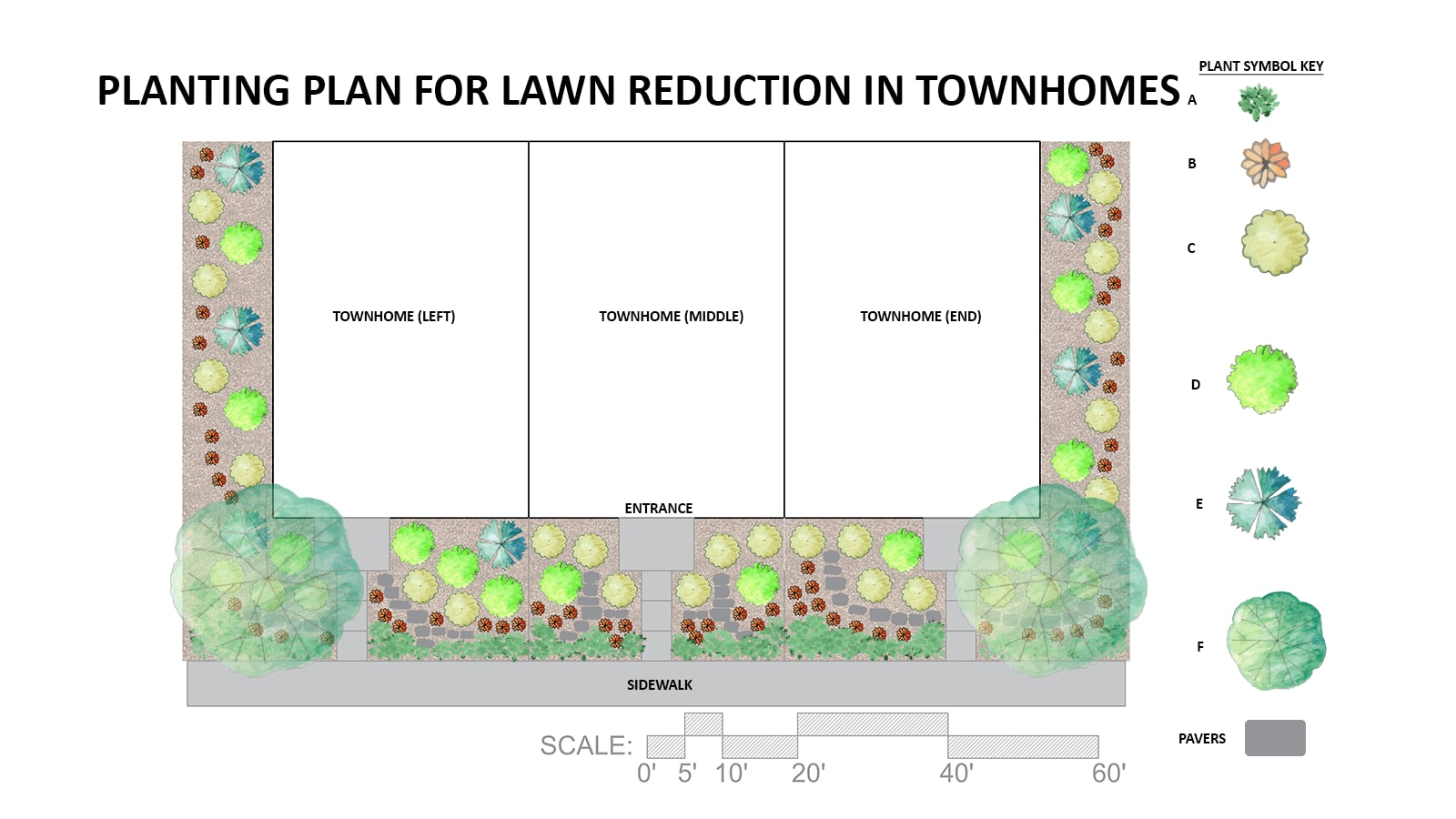

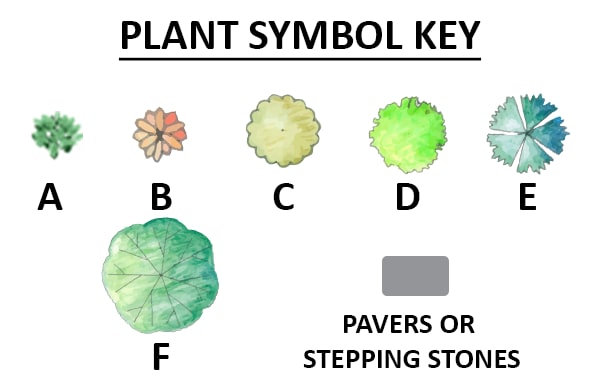

The legend is the drawing’s translation key. It identifies the marks, line types, and abbreviations the designer chose for that specific project. Look for a box titled plant key, plant legend, planting schedule, or symbols. A University of Maryland Extension planting-plan example places a plant symbol key beside the drawing, showing the visual marks that correspond to its planting layout. Its native landscape design examples are a useful reminder that the key belongs with the plan, not in memory.
Start by finding four things: the symbol, its code, the plant name, and the quantity or size note. A code such as AC, HG, or a number is only useful when the schedule defines it. The schedule may name a plant in both common and botanical language, then add information such as container size, caliper, height, spacing, or count. When a plan and schedule appear to disagree, pause there. The answer is not to guess from the drawing’s color or shape.
Tree symbols show placement and future space
A proposed tree often appears as a large circle or a loose, scalloped outline with a dot, cross, or small circle at the center. The center mark commonly identifies the trunk location. The outer edge can suggest the canopy’s intended mature spread, which matters when the tree sits near a roofline, driveway, sidewalk, utility access point, or patio. It is a planning tool, not a promise that the nursery tree will arrive at that diameter.
Existing and proposed trees need to be separated before any decision is made. A plan may use a lighter line, a dashed line, a different fill, or a note such as “to remain” to distinguish an existing tree from a new one. An X or removal note may identify material to be taken out. Those conventions are common, but the legend takes precedence. A full-size circle drawn over a path can look alarming until you discover it represents a mature canopy, not the trunk or a new obstruction.
Scale explains how much ground the tree is intended to occupy. Mississippi State University Extension advises drawing plant symbols to represent mature size and leaving room for maintenance and utilities, rather than placing plants close together just to make a new installation look full. Its home landscape design guidance also recommends beginning with the plants that carry the most visual importance, such as focal points and specimen trees. That sequence makes a plan easier to read because the largest decisions appear first.
Shrubs, perennials, and grasses are read as layers
Shrubs are usually smaller than tree symbols and may be shown as rounded circles, irregular clouds, or compact clusters. A single shrub can have its own symbol and count. A hedge may be a row of repeated marks, a continuous band, or a line with a spacing note. Perennials and ornamental grasses often use lighter, finer symbols because their visual weight is different from a tree canopy or evergreen foundation planting.
Read the plan in layers instead of trying to identify every plant at a glance. First find the major trees. Next trace the shrub layer that frames foundations, paths, and outdoor rooms. Then look for the lower layer, which may include grasses, flowering perennials, bulbs, or groundcovers. A drawing can feel busy when all three layers overlap, especially near an entry. The schedule tells you which marks are separate plants and which ones form a repeated group.
The symbol’s diameter is also a spacing clue. If five shrub symbols overlap, the designer may be showing a continuous mass at maturity. If the circles have clear space between them, the gap can be intentional room for mature growth, access, mulch, or a change in plant type. Do not treat blank space as a missing plant without first checking the plant schedule and the scale bar.
Patterned areas usually mean mass planting
A dotted, hatched, or textured area often describes a mass planting rather than a row of individually counted plants. The boundary tells you where the planting belongs. The code inside the area, nearby callout, or schedule identifies the plant material. This is especially common for groundcovers, low perennials, bulbs, and repeated plantings in broad beds. A textured field might also represent mulch, lawn, decorative stone, or paving, so it must be read through the legend before it is treated as a plant area.
Mass plantings are planned as a visual and functional area. The edge may follow a walk, soften a foundation, hold a slope, frame an entry, or create a transition between a lawn and a patio. The plan may list plants per square foot, a spacing interval, or a total count. Each format leads to a different installation approach. Individual circles are counted one by one. A mass needs its outline, its material, and the specified spacing understood together.
When a plan uses a hatch for mulch or stone beside a hatch for planting, line weight and labels matter. A landscape drawing frequently layers materials over one another, so follow boundaries carefully. A mulch bed can contain individual shrubs and trees. A stone path can cross a groundcover area. The drawing is not asking one symbol to do every job, it is showing several materials sharing one outdoor space.
Plant schedules turn symbols into an installation list
A plant schedule is where a symbol becomes something a crew can locate and install. It often includes a code, botanical name, common name, quantity, installed size, and notes about the plant’s form or condition. The National Park Service describes historic planting plans that used numbered references tied to a key, with bubbles indicating planting areas and numbers identifying both the plant and the quantity. Its explanation of “plant by number” plans shows why the plant list and the marks on the sheet must be read together.
Check the count before estimating how full a bed will look. Ten one-gallon perennials and ten five-gallon shrubs create different coverage even if their symbols are the same diameter on a small-scale concept plan. A schedule may also specify root condition or caliper for trees. Those details affect installation, spacing, and the way the finished landscape develops over time.
Use the plan to understand intent, then use the schedule to verify material. That order prevents a common mistake: seeing a beautiful illustration and assuming every nearby shape represents a different species. In many plans, several symbols can describe one plant group, while one plant code can repeat across multiple beds.
Follow the plan from the fixed features outward
Before focusing on plants, find the fixed features that shape the layout: house walls, doors, windows, driveways, walks, patios, retaining walls, fences, utility equipment, and property lines. These are the anchors for every planting decision. A tree symbol beside a patio is not just greenery. It may provide future shade, screen a view, soften a hard edge, or frame a gathering area. A narrow strip between a walk and wall may call for a lower plant layer to preserve clear passage.
Trace bed lines next. They show where soil preparation, mulch, and plant material are intended to begin and end. Then read grade arrows, drainage notes, and irrigation marks if they are included. A planting choice that looks fine in an empty rectangle can fail if it blocks a drain, crowds a utility, or lands in a bed that stays wet after rain. The plan works as a coordinated picture, not as a collection of decorative circles.
It also helps to compare the plan with the actual property. Stand at the entry, walk the path, and look back toward the house. Check which windows need to stay visible, where a mower needs room to turn, and whether a plant shown near a corner will mature into a circulation path. A drawing clarifies the sequence, while the site confirms the conditions.
Notice the practical notes around the drawing as well. A leader line can point to a specific condition that does not fit inside the symbol, such as a planting detail, a required clearance, or a material transition. A scale bar lets you test the relationship between a symbol and the space around it. If the plan has a detail sheet, use it to see how edging, mulch, root balls, or a retaining edge are intended to meet the ground.
Questions that make a plan meeting more productive
Bring the plan and schedule to the first design conversation, then mark the items you want to understand before installation. Start with the symbols that affect use of the property: shade trees, privacy screens, front-entry plantings, path edges, and any planting near a patio or retaining wall. Those choices shape both the first impression and the long-term upkeep of the space.
- Which symbols represent existing plants, and which represent new work? This clarifies what will remain and what changes.
- What mature width is intended at each tight location? This protects walks, walls, and service access.
- Which areas are mass plantings? This makes quantities and maintenance expectations easier to understand.
- How do planting, drainage, and hardscape connect? This keeps the plan from treating one outdoor feature as an afterthought.
Michael’s Landscaping provides landscape design, garden planning, and plant, shrub, and tree installation. The team can help turn the drawing into a practical conversation about the way a property is used, the features that need to stay clear, and the planting decisions that support the finished space. If native plant choices are part of the project, the native plant landscape design page explains how that option can fit into the broader plan.
A planting plan is a shared reference, not a guessing game
A good planting plan gives everyone the same starting point. The homeowner can see the intended layout. The designer can show how the layers work together. The installation team can match codes, quantities, and locations before plants arrive. That clarity is most useful when the plan is read slowly enough to connect each symbol with its key and schedule.
Begin with the legend, identify the major trees and fixed features, trace the planting-bed boundaries, and then work through shrubs, perennials, groundcovers, and quantities. Those steps make the drawing less abstract and make the finished landscape easier to picture. When the details are clear before installation, there is more room to focus on the outdoor space you want to use every day.
